Oil Mist Collector with Air Cleaner
【Applicable Range】CNC digital control machine, cutting machine, electric discharge machine, gear-hobbing machine, grinding machine, screw heading machine and any machine would produce oil gas
When the machining process is in high speed and cutting, the oil gas generated from coolants is increased. If it spreads to the operation area, it will cause the air pollution and seriously harm to human health. Furthermore, machinery which stays in oil smoke for a long time would be brought about high failure. CTM’s new creative Oil Mist Collector with Air Cleaner can solve these problems.
Installation of air cleaner on your machine or in your factory is capable of effectively recycling oil mist for reuse. It not only avoids toxic matter extending and keeps cleanliness of working environment, but it also raises working efficiency and maintains your personal health. Meanwhile, it can cut down the cost, save energy, save time of cleaning, and improve the quality of air and environment. It is the best company for the machinery and processing industries.
CTM’s Oil Mist Collector has four-stage filtering system.
- The first filter screen is a woven stainless steel screen, cable of filtering oil mist (filtering particle≧ 20μm).
- The second filter screen is fabric cotton, which can leach the water mist (filtering particle≧ sub-micron).
- The third filter screen is resin fabric, which can filter oil gas (particle≦ 0.1μm).
- The forth is the filtration cartridge, which is able to filter oil smoke (filtering particle≦ 0.01μm).
This exclusively designed filtering system is capable of thoroughly reducing oil mist, also offers a unique air purification function. The Oil Mist Collector with Air Cleaner “consumes less electricity, while providing maximum oil mist suction performance”.
Our design concept is “Environmental Production & Energy Reclamation”, “Save Energy & Reduce Carbon” and “Air Purification”. Air cleaners employ washable filter system and environment protected materials. They feature extra high oil mist collection efficiency up to 99% for reuse, contributing to environmental protection and energy reclamation. On aspect of save energy & reduce carbon, with the low power consumed and high efficiency operation system, electricity consumption and carbon dioxide discharge can be reduce to meet the international trend of energy-saving and carbon reduction. With the outstanding function of isolating oil mist, powder dust, toxic gas, and odors to purify air in the working environment, on air purification side.
#voltage stabilizer #power transformer Converter #voltage regulator #power supply #current regulator #transformers #power supplies #stabilizers #automatic stabilizers #ups power supply #uninterruptible power supply #oil collector #best air purifier #waste management #air cleaner #air purifier #automatic voltage regulator #servo stabilizer #voltage regulator #voltage regulation #voltage regulators #voltage regulator circuit #constant voltage transformer #power regulator #automatic voltage stabilizer #power supply

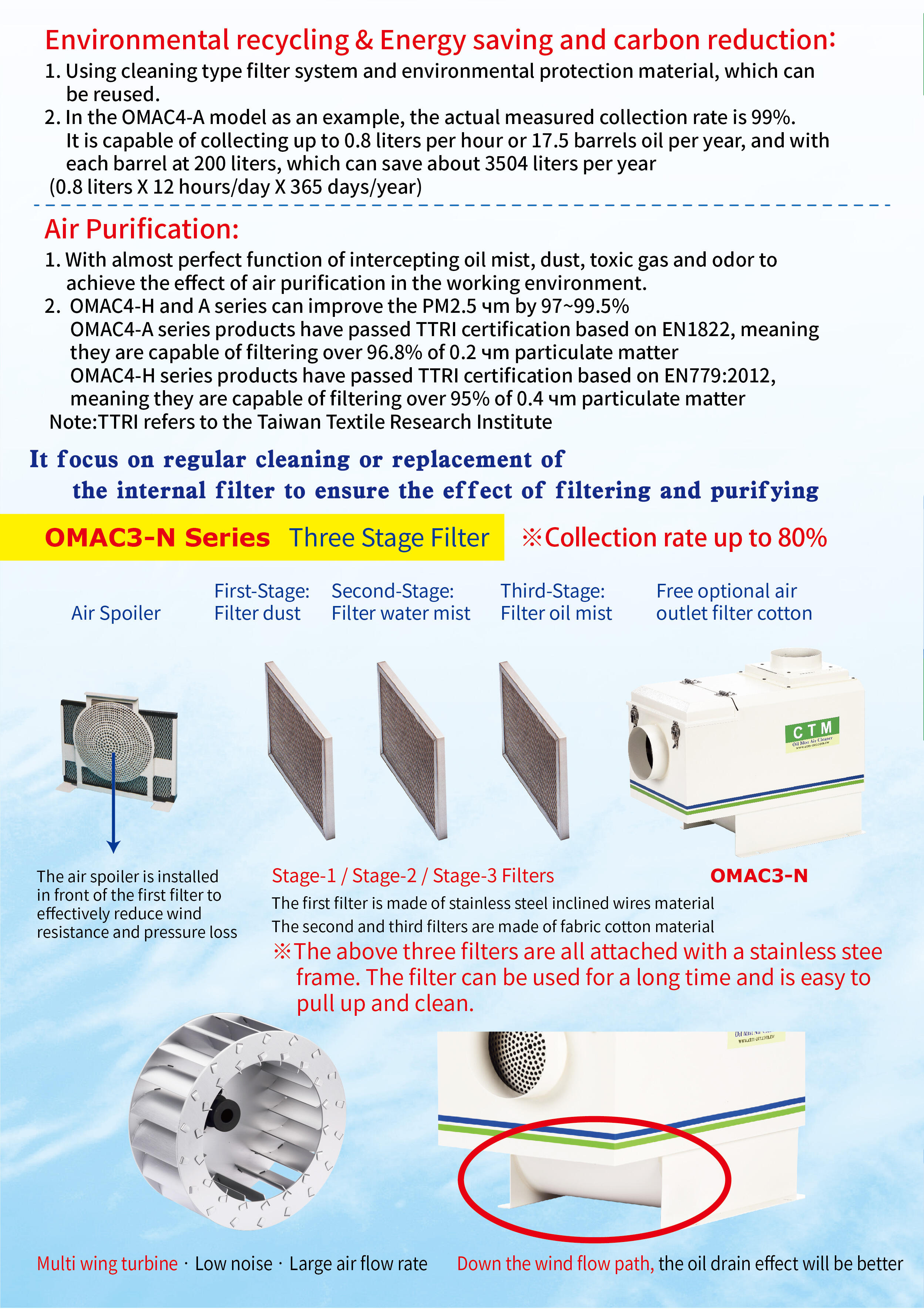

Environmental recycling & Energy saving and carbon reduction
- Using cleaning type filter system and environmental protection material, which can be reused.
- In the OMAC4-A model as an example, the actual measured collection rate is 99%. It is capable of collecting up to 0.8 liters per hour or 17.5 barrels oil per year, and with each barrel at 200 liters, which can save about 3504 liters per year (0.8 liters X 12 hours/day X 365 days/year)
Air Purification
- With almost perfect function of intercepting oil mist, dust, toxic gas and odor to achieve the effect of air purification in the working environment.
- OMAC4-H and A series can improve the PM2.5 чm by 97~99.5%
OMAC4-A series products have passed TTRI certification based on EN1822, meaning they are capable of filtering over 96.8% of 0.2 чm particulate matter
OMAC4-H series products have passed TTRI certification based on EN779:2012, meaning they are capable of filtering over 95% of 0.4 чm particulate matter
Note:TTRI refers to the Taiwan Textile Research Institute
Stage-1 / Stage-2 / Stage-3 Filters
The first filter is made of stainless steel inclined wires material
The second and third filters are made of fabric cotton material
The above three filters are all attached with a stainless steel frame. The filter can be used for a long time and is easy to pull up and clean.
Multi wing turbine‧Low noise‧Large air flow rate
Down the wind flow path, the oil drain effect will be better
The Stage-1 and the Stage-2 filters are disposable filter cotton that can intercept: oil mist, water vapor, and partial dry dust. No cleaning is needed and replacement is convenient. Costs of the consumables are low.
The Stage-3 filter: A filter bag and it can effectively intercept ultra-fine dry dust. The disposable filter bag is easy to replace and of low cost. It can sufficiently extend the life span of the Stage-4 high precision filter cartridge.
With a new exclusive patented pressure difference gauge capable of indicating front and back end filter blockages

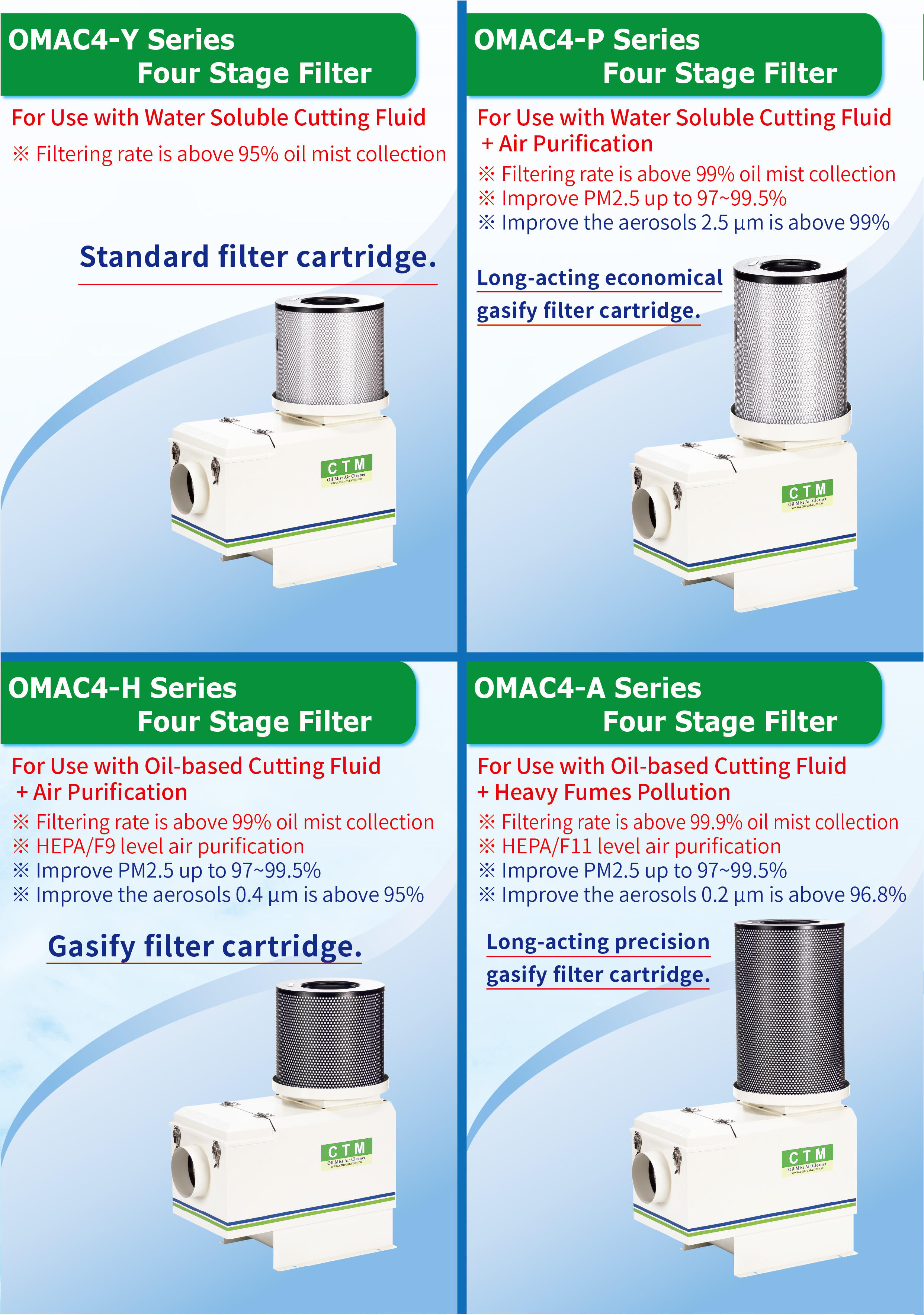

OMAC4-Y Series - Four Stage Filter
For Use with Water Soluble Cutting Fluid
Filtering rate is above 95% oil mist collection
Standard filter cartridge.
OMAC4-P Series - Four Stage Filter
For Use with Water Soluble Cutting Fluid + Air Purification
Filtering rate is above 99% oil mist collection
Improve PM2.5 up to 97~99.5%
Improve the aerosols 2.5 μm is above 99%
Long-acting economical gasify filter cartridge.
OMAC4-H Series - Four Stage Filter
For Use with Oil-based Cutting Fluid + Air Purification
Filtering rate is above 99% oil mist collection
HEPA/F9 level air purification
Improve PM2.5 up to 97~99.5%
Improve the aerosols 0.4 μm is above 95%
Gasify filter cartridge.
OMAC4-A Series - Four Stage Filter
For Use with Oil-based Cutting Fluid + Heavy Fumes Pollution
Filtering rate is above 99.9% oil mist collection
HEPA/F11 level air purification
Improve PM2.5 up to 97~99.5%
Improve the aerosols 0.2 μm is above 96.8%
Long-acting precision gasify filter cartridge.

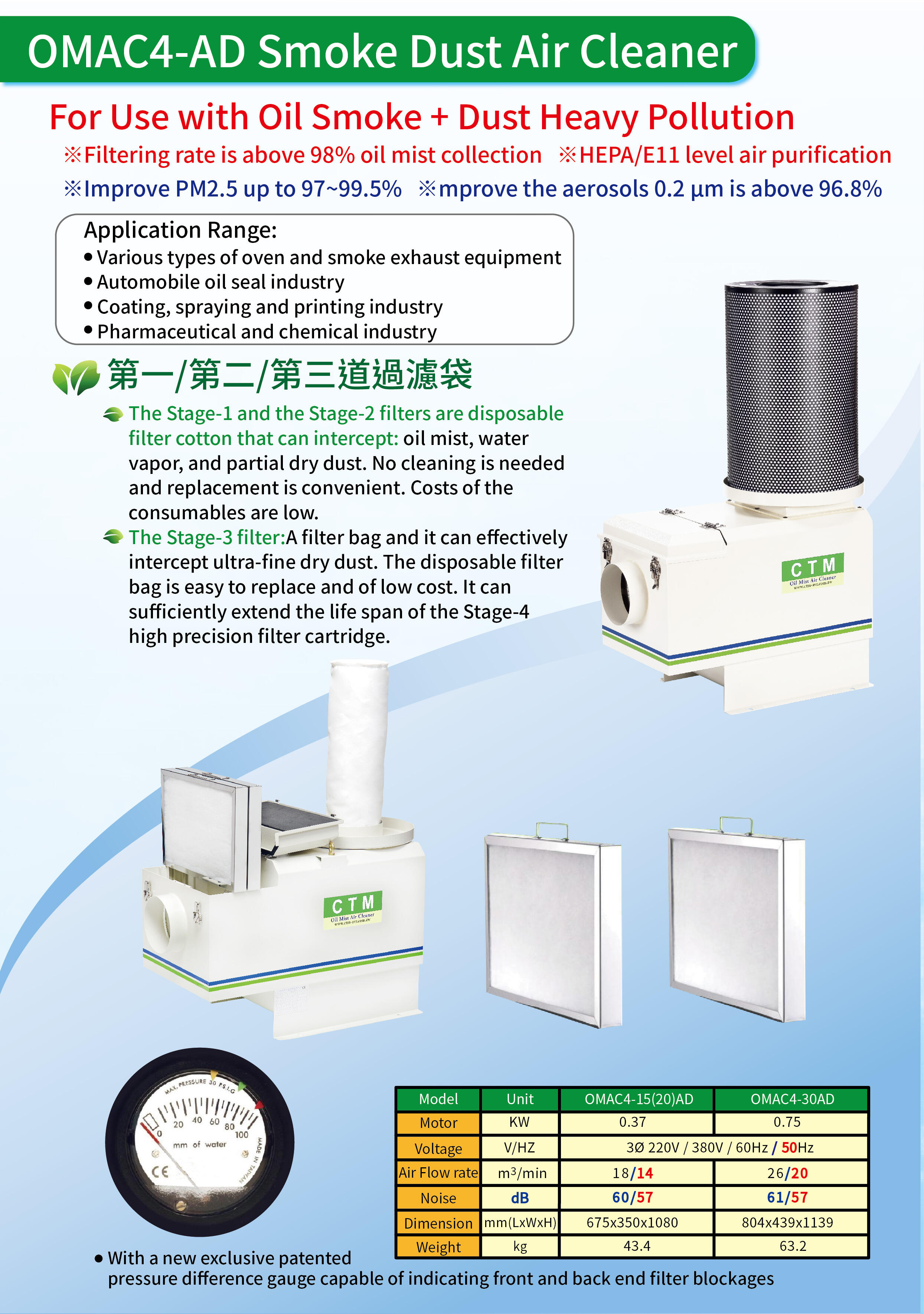

OMAC4-AD Smoke Dust Air Cleaner
For Use with Oil Smoke + Dust Heavy Pollution
Filtering rate is above 98% oil mist collection
HEPA/E11 level air purification
Improve PM2.5 up to 97~99.5%
Improve the aerosols 0.2 μm is above 96.8%

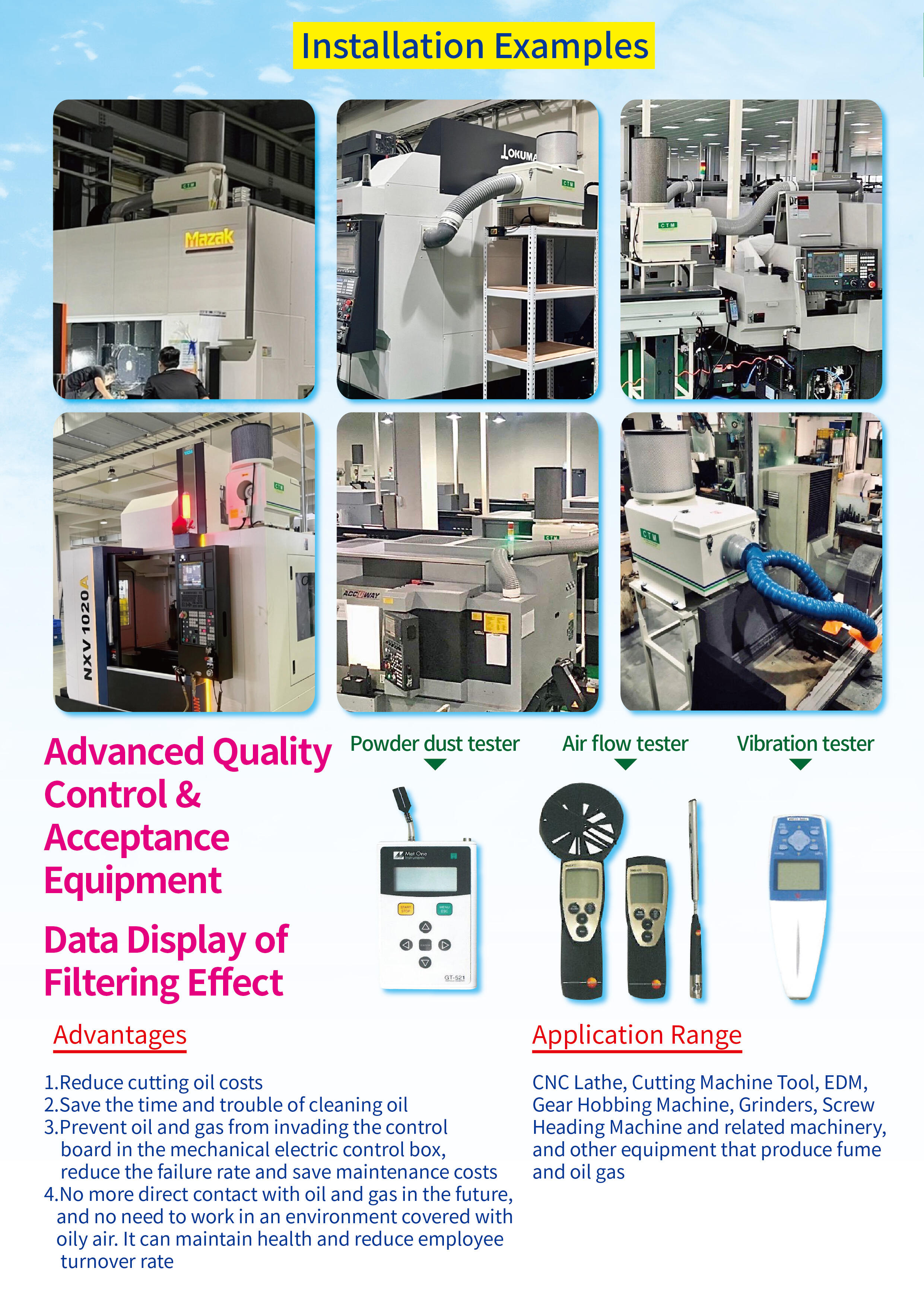

Advantages
1.Reduce cutting oil costs
2.Save the time and trouble of cleaning oil
3.Prevent oil and gas from invading the control board in the mechanical electric control box, reduce the failure rate and save maintenance costs
4.No more direct contact with oil and gas in the future, and no need to work in an
CNC Lathe, Cutting Machine Tool, EDM, Gear Hobbing Machine, Grinders, Screw Heading Machine and related machinery, and other equipment that produce fume and oil gas
